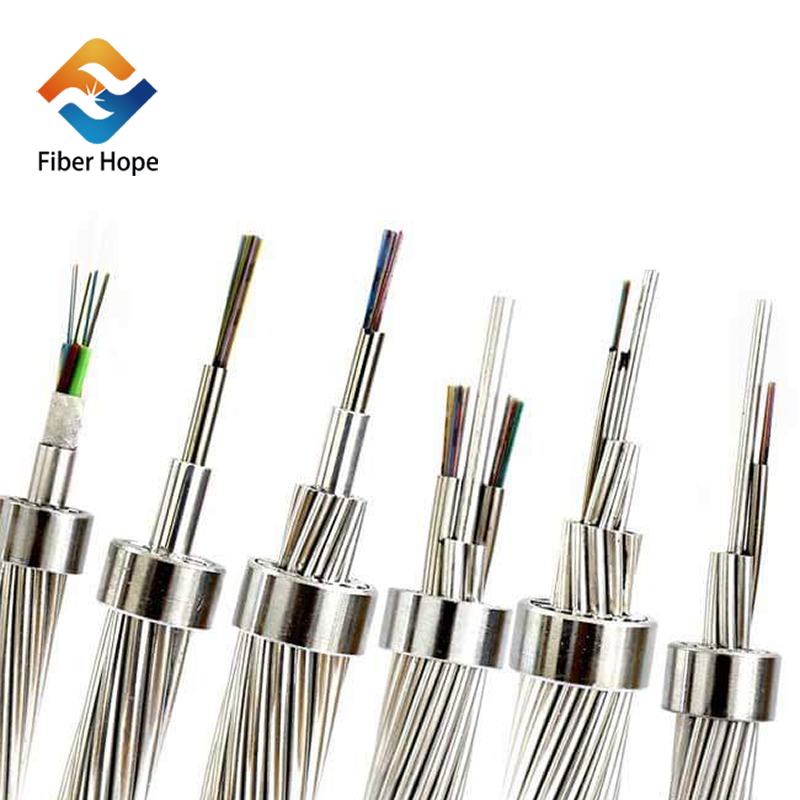

OPGW cable
OPGW 12 24 core fiber optic cable
B站不支持收货地址
B站不支持库存规格
Place Of Origin:
China
Brand Name:
FIBER HOPE
Certification:
ISO 9001: 2008
Minimum Order Quantity:
1 kilometer
Packaging Details:
Wooden or iron-wooden drum or carton, 2000-5000m/drum or as customized
Delivery Time:
Depends on quantity, usually 5-10 days after deposit received
Payment Terms:
T/T, L/C, Western Union, ect
Supply Ability:
3000 kilometers/month
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

OPGW fiber optic cable application


Description

Stranding stainless steel tube OPGW cable is a cable product that produced by way of comprehensive stranding the aluminum-clad steel wires and stainless steel tube optical unit which replaced one or some of the aluminum clad steel wires of traditional ground wire cable. It realized the function of optical fiber communication and has a bigger diameter and more optical fiber compared with center stainless steel tube OPGW.

Features

·Big diameter and more optical fiber
·Big tensile strength and short-circuit current capacity, arrive the best balance of mechanical and electrical properties
·One or more optical units
·Best design of strand, obtain secondary optical fiber extra length
·Two or three layers of stranding wires, the wire can be aluminum clad steel wire or the combination of aluminum alloy wire and aluminum wire

Technical Parameter
OPGW Cable modelOPGW-60OPGW-70OPGW-90OPGW-110OPGW-130
Number /diameter(mm) of
stainless steel tube
1/3.52/2.42/2.62/2.81/3.0
Number /diameter of AL wire(mm)0/3.512/2.412/2.612/2.812/3.0
Number /diameter of ACS wire(mm)6/3.55/2.45/2.65/2.86/3.0
Diameter of Cable (mm)10.512131415
RTS(KN)7545536480
Cable weight (kg/km)415320374432527
DC resistance(200C W/km)1.360.5240.4480.3860.327
Modulus of elasticity(Gpa)16296.195.995.697.8
coefficient of Linear thermal
expansion(1/ºC×10-6)
12.617.817.817.817.2
Short circuit capacity (kA²s)2457.378.9105.8150.4
Max. operation temperature (ºC)200200200200200
Max. fiber count4832485230
Structure

OPGW cable structure

Application

OPGW fiber optic cable is mainly used on 500KV, 220KV, 110KV voltage level lines.

Affected by factors such as power outages and safety of the line, it is mostly used on new lines

Production workshop

OPGW cable manufacturers


OPGW cable companies


OPGW fiber optic cable manufacturer


Production equipment

OPGW cable factory


OPGW cable supplier


product-OPGW cable -Fiber Hope-img-1


Packaging and transportation
product-Fiber Hope-img-1
product-OPGW cable-Fiber Hope-img-1
product-Fiber Hope-OPGW cable-img-1
product-Fiber Hope-OPGW cable -img-1
product-Fiber Hope-img-2
product-OPGW cable -Fiber Hope-img-2
Certificate

product-Fiber Hope-img-2

Technology Requisition

product-OPGW cable-Fiber Hope-img-2


product-Fiber Hope-OPGW cable-img-2

FAQ

Q1:Are you the real factory?

Yes, we are the real factory and warmly welcome you to visit us.


Q2: What is your delivery time?

Generally the lead time is 10-30 days. If you need them urgently, it's negotiable.


Q3:Do you provide samples , it is free or extra ?

Yes, we could offer the sample for free, but do not pay for the freight.


Q4: Whether these products quality assured ?

Yes,all products have ISO9001, TL certification


Q5: If I want to purchase, how to pay ?

Generally we accept T/T, Western Union, L/C


Q6:How would the goods be shipped?

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional


Q7:Can your supply OEM products under our brand ?

Yes , it is available to print your logo on the cable and on the packing box according to your design.
