ADSS cable
B站不支持收货地址
B站不支持库存规格
Place Of Origin:
China
Brand Name:
FIBER HOPE
Certification:
ISO 9001: 2008
Minimum Order Quantity:
1 kilometer
Packaging Details:
Wooden or iron-wooden drum or carton, 2000-5000m/drum or as customized
Delivery Time:
Depends on quantity, usually 5-10 days after deposit received
Payment Terms:
T/T, L/C, Western Union, ect
Supply Ability:
3000 kilometers/month
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

ADSS

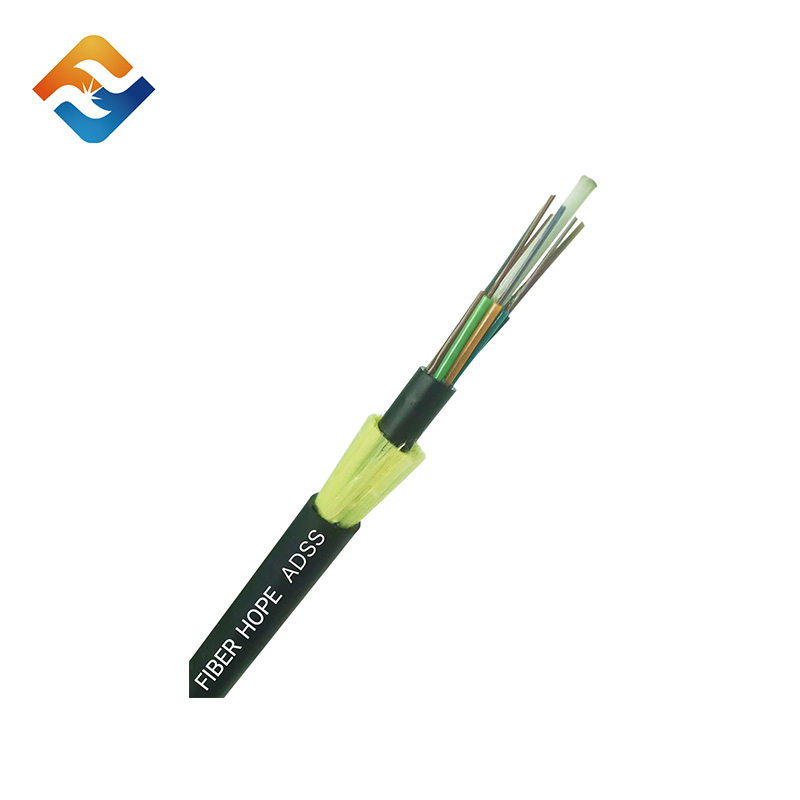

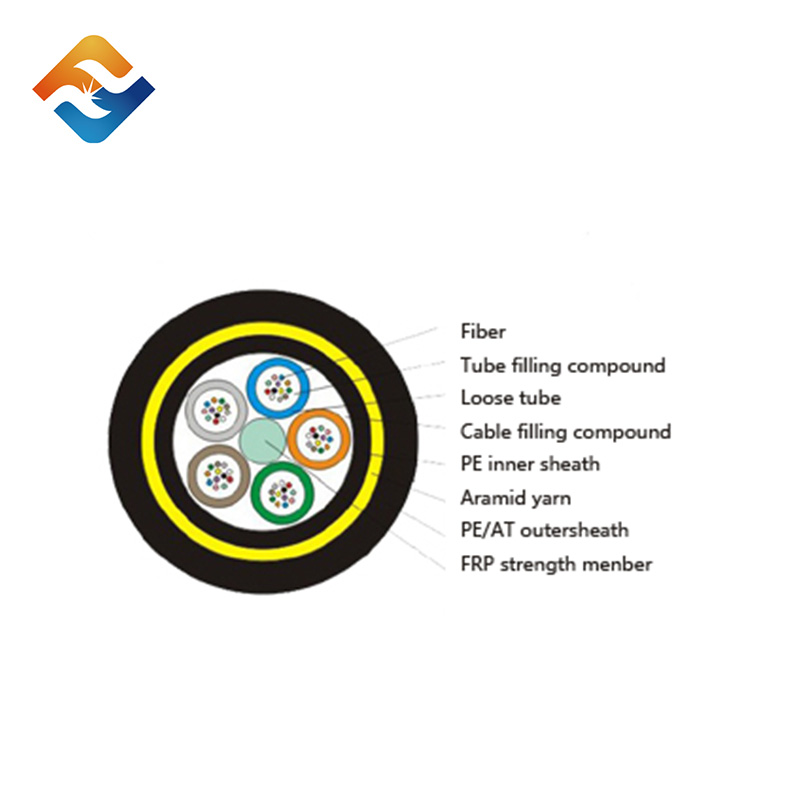

ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP
(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



product-Fiber Hope-img-1



Characteristics

Two jacket and stranded loose tube design. Stable performance and compatibility with all common fiber types.

Can be installed without shutting off the power, mainly installed at existing 220kv or lower voltage power lines.

Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25 KV.

Aramid yarn strength member ensure tensile strength, good performance and temperature.

Crush resistance and flexibility. PSP enhancing moisture-proof.

Small diameter, light weight and friendly installation. Long span lenths and the largest span is over 1000m.
